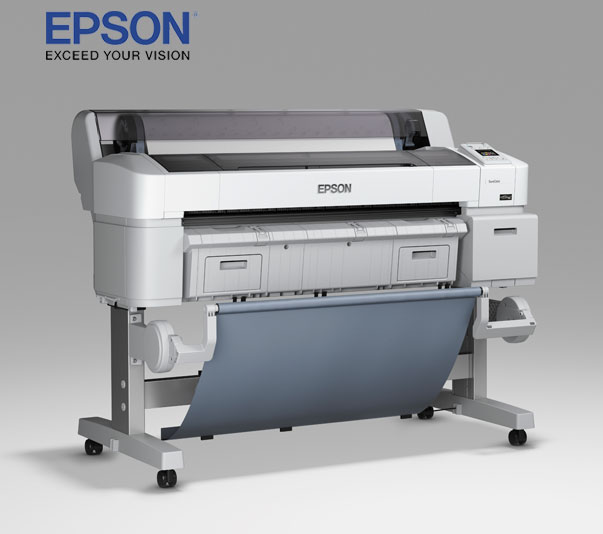

The Epson SureColor SC-T5070 offers fast and precise processing for accurate printing of CAD documents and architectural designs.
THE PRECISION PRINTER THAT SPEAKS YOUR LANGUAGE.
The Epson SureColor SC-T5070 offers fast and precise processing for accurate printing of CAD documents and architectural designs.
High Quality CAD Prints
Designers and architects will be pleased to know that the SC-T5070 is specially designed to fulfill the needs of the CAD market, with native compatibility with HP™ GL2 printer language. It features high precision and accurate dot placement, giving you superb quality printouts every time. In addition, the matte black ink increases the richness of your printed documents and improves line drawing quality.
Faster Printing, Precise Finishing
Renowned for its extreme precision, the Epson's Micro Piezo™ Thin Film Piezo™ print head is coupled with high-speed cartridge drive technology to produce and A1 printout in a mere 28 seconds - 1.25 times faster as compared to Epson Stylus Pro 7700/9700. The cutting accuracy of SC-T5070 has also been enhanced to 2 seconds for an A1 printout.
Durable and Sustainable Prints
Enjoy better shelf life for all your printouts with the specially-developed Epson Ultra Chrome™ XD Ink. With its deeper penetration, printed documents not only appear more vibrant, they are also smudge-resistant to enable quick handling of printouts in the office or on-site. UltraChrome XD Ink is also formulated to deliver a high degree of water and fade resistance.
High Cost Effectiveness
The SC-T5070 increases your cost effectivness through two ways:
Model | Epson Surecolor™ SC-T5070 |
Print Head | Micro Piezo™ TFP |
Maximum Resolution | 2880 dpi x 1440 dpi |
Ink Type | Epson Ultra-Chrome XD |
Colours | Cyan, Magenta, Yellow, Black, Photo Black, Matte Black |
Ink Capacity | 110 ml / 350 ml |
Paper Handling | |
Roll Media | |
Printable Width | 254 - 914 mm |
Thickness | 0.08 - 0.5 mm |
Cut Media | |
Printable Width | 210 - 914 mm |
Thickness | 0.08 - 0.8 mm |
Thick Board | |
Thickness | 0.8 - 1.5 mm |
Borderless Printing (Max. paper road width is 620mm) | 254 mm / 11", 300 mm / 11.8", 329 mm / 13", 406 mm / 16", 432 mm / 17", 515 mm / 20.3", 594 mm / 23", 610 mm / 24", 728 mm / 29", 841 mm / (AO)33", 914 mm / 36" |
Control Panel | 2.5" colour LCD |
Connectivity | |
Standard | Hi-Speed USB / 10BASE-T / 100BASE-T 1000BASE-T |
Print Software | LFP Print Plug-In for Office, Users Guide (EN), Network Guide (EN), LFP RemotePanel 2, EpsonNet Config, EpsonNet Print (Windows only) |
Printer Web Function | Remote Manager, New E-mail function: E-mail error / warning notice from PC and/or from printer, New HDD utility: Control of HDD functions |
Printer Driver | |
OS Requirements | Windows7/Vista/XP CPU: Core 2 Duo 3.05GHz; Memory: Free memory more than 1GB; HDD: Space more than 32GB Machintosh Mac OS X (10.5.8 or later) CPU: Core 2 Duo 3.05GHz; Memory: Free memory more than 1GB; HDD: Space more than 32GB |
UltraChrome XD Ink Cartridge (110 ml.) | ||
![]() |
Photo Black Ink (110 ml.) | C13T692100 |
![]() |
Cyan Ink (110 ml.) | C13T692200 |
![]() |
Vivid Magenta Ink (110 ml.) | C13T692300 |
![]() |
Yellow Ink (110 ml.) | C13T692400 |
![]() |
Matte Black Ink (110 ml.) | C13T692500 |
UltraChrome XD Ink Cartridge (350 ml.) | ||
![]() |
Photo Black Ink (350 ml.) | C13T693100 |
![]() |
Cyan Ink (350 ml.) | C13T693200 |
![]() |
Vivid Magenta Ink (350 ml.) | C13T693300 |
![]() |
Yellow Ink (350 ml.) | C13T693400 |
![]() |
Matte Black Ink (350 ml.) | C13T693500 |

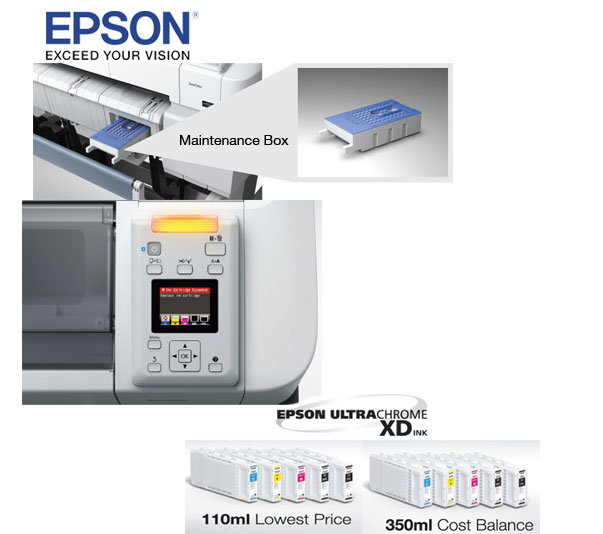

Other Consumables | ||
Maintenance Box | C13T619300 | |
Accessories | ||
Auto-Cutter Spare Blade | C13S902006 |
