Techkon SpectroDrive
The new TECHKON SpectroDrive, with its automatic color and density measurement capabilities is the perfect solution to substantially increase press productivity by ensuring consistent print-to-print color accuracy throughout the press run.
Scan-Measurement System SpectroDrive
Quality on the fast track
The new TECHKON SpectroDrive, with its automatic color and density measurement capabilities is the perfect solution to substantially increase press productivity by ensuring consistent print-to-print color accuracy throughout the press run.

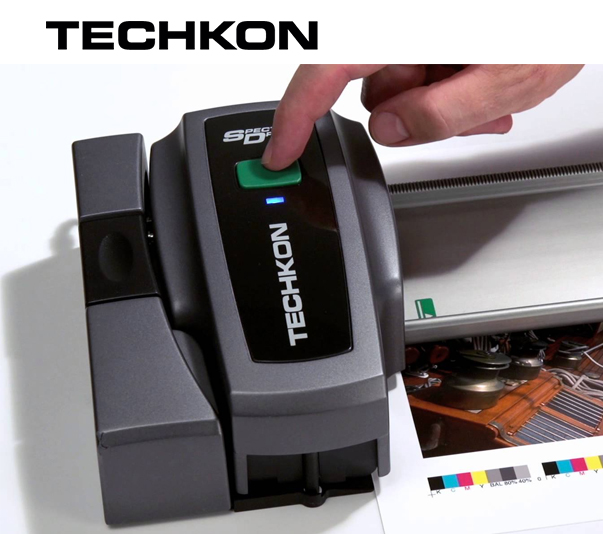

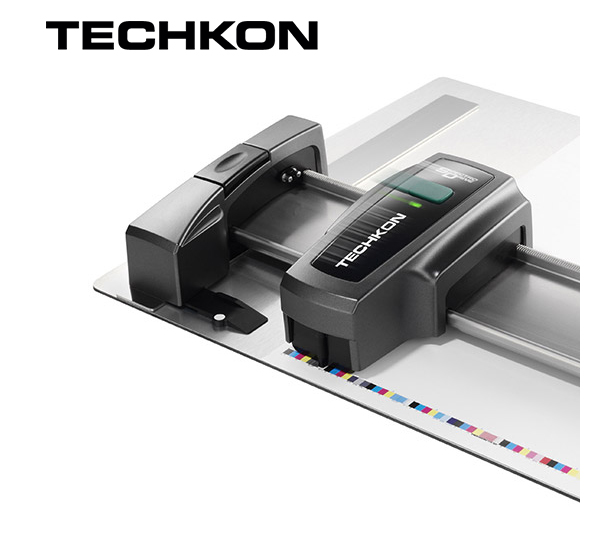

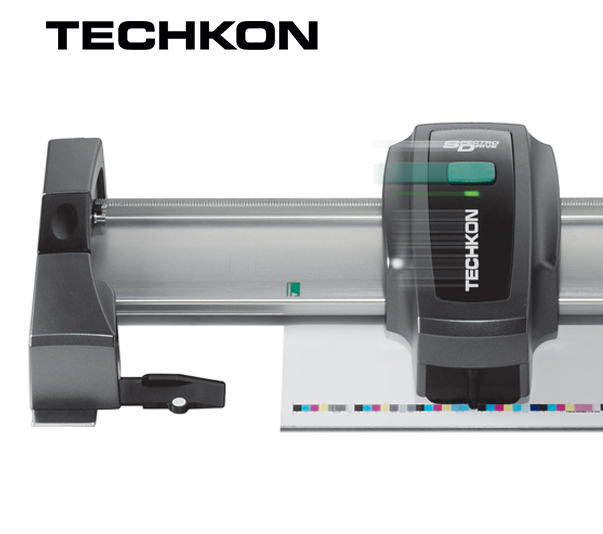

The system consists of two components: The motorized measurement system scans the complete color bar on a printed sheet within seconds and simultaneously sends the spectral measurement data wirelessly to the PC where all relevant information for controlling the printing press is displayed. One unique feature of SpectroDrive is its flexibility to be used with any press type or format. TECHKON SpectroDrive is delivered as a complete turn-key system.
The TECHKON ExPresso software offers a comprehensive tool-set comprising measurement of CMYK and spot colors, support of up to 16 print units, face and reverse printing, display of color density, dot gain, gray balance, L*a*b*-values and recommendations on how to adjust the ink on the press. This is only an excerpt of the complete functionality. Thanks to its modularity, TECHKON ExPresso is expandable and versatile. The measurement data can be exported into other software applications that connect real-time to printing presses to enable a "closed loop" turn-key solution.
| Measurement technology: | Spectral measurement and density determination to ISO 5-3/4. Spectral range: 400 to 700 nm in 10 nm steps. |
| Measurement geometry: | 0/45° optics according to DIN 5033 |
| Measurement aperture: | 2 x 1,5 mm |
| Measurement light: | Gas filled lamp, type A |
| Polarization filter: | 2 x linear, switched on and off per software command |
| Scan parameters: | Scanning speed approx. 150 mm/s |
| Density standard: | DIN 16536, DIN 16536 NB, ISO/ANSI T, ISO/ANSI I, ISO E, spectral density |
| Measurement range: | 0.00 – 2.50 D |
| Repeatability: | +- 0.005 D, O.03 CIE DEab |
| Power Supply: | AC Adapter 110 – 240 V, 47 – 63 Hz |
| Communication-Port: | Module forwireless data transmission with PC-sided USB port |
| Weight: | 820 grams |
| Measurement Modes | ||
| Ink zone density display of CMYK & Spot colors | ||
| Dot area, dot gain & print contrast | ||
| Target values, references, tolerances, OK sheet | ||
| ISO 12647 and GRACoL G7 evaluation display | ||
| Ink zone specific colorimetric ΔE display, Lab, LCh, ΔLab, ΔLCh | ||
| Statistical analysis and report generator | ||
| InkCheck recommendations for ink key adjustments | ||
| Data export | ||
| Densitometric gray balance | ||
| Display of single measurements when used as a hand held device | ||
| Supports Perfecting | ||
| Supports up to 16 printing units | ||
| Supports up to 6 printing units |
